Debug Scripts

Required permissions: ACD > Studio > Scripts > Déboguer

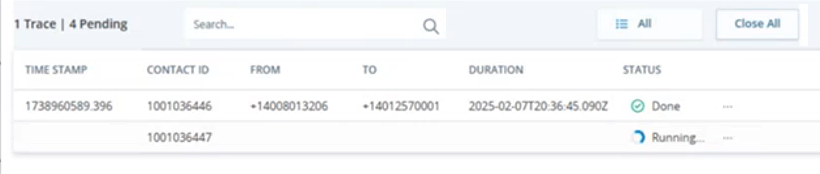

You can run script traces to check for issues in your scripts. Each trace opens in a separate window. This means you can keep previous traces open to compare to the new ones, or capture multiple live contacts in a row.

Run a Script Trace

You can track the progress and performance of your script with the Trace Output tool. This tool traces the contact through the script and displays the results of each action that fired, what variables are being set and when, and the values the variables held at each point. This is a helpful tool to test and debug your scripts. You can run traces on live interactions or simulated ones.

Vous ne pouvez exécuter une trace que si le script est enregistré. Si vous tentez d’exécuter une trace de script sur un script comportant des modifications non enregistrées, Studio vous invite à enregistrer le script. Si le script contient des erreurs, Studio ne l’enregistrera pas Vous devez résoudre les erreurs avant de pouvoir enregistrer le script et exécuter la trace.

1. Dans CXone, cliquez sur le sélecteur d'application et sélectionnezRoutage omnicanal > Studio .
2. Ouvrez un script ou créez-en un.
3. Click Trace > Start with Trace.
4. Select an inbound phone ACD Skill.
5. To pass values into the script via parameter variables, enter the values in the Parameters field. Enter one value per line. The values you enter map to parameters P1 through Pn, where n is the number of the last parameter value you add.
6. To simulate an interaction for an inbound phone script, click Simulate Inbound Call and provide the necessary information.

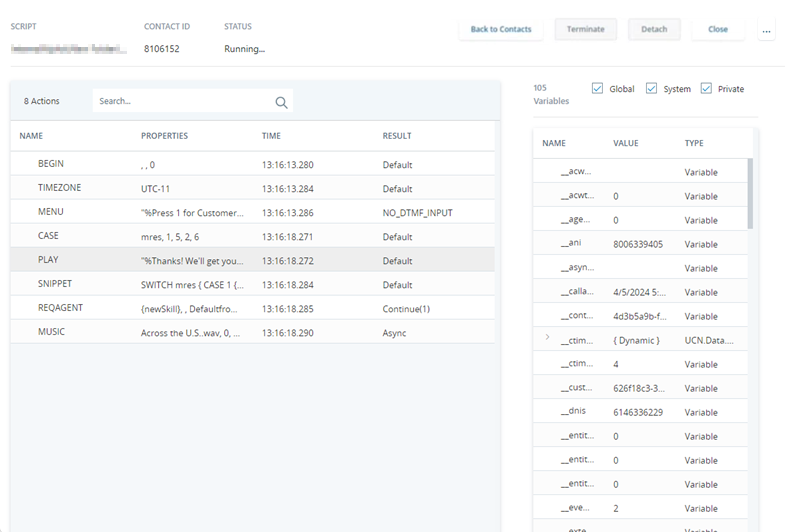

7. Click Start Trace. The trace output window opens. As the script runs, variables appear in the window in the order they fire. You can see the name of the variable, its properties and their configurations, the time the action fired, and the result of its firing.

8. Click a variable in the trace output to see all variables and their values in the script at the time that the action fired. The variables appear in the field on the right side of the trace output window.

   View image)



9. Select or clear Global, System, or Private to filter the variables in the list. Clearing the option removes that type of variable from the list.
10. To end the trace without ending the interaction on the server, click Detach.
11. To end the trace and the interaction, click Terminate. This disconnects the contact and ends the interaction on the server.

Capture Live Contacts

You can capture a trace on a script as it runs. You can do this with production scripts processing live contacts. This allows you to diagnose issues that your contact center is experiencing, or capture data for troubleshooting with technical support. Currently, CXone Studio can only capture the next instance of the script running. It cannot capture a continuous trace.When you capture a single trace, the resulting information appears in theTrace Output window.

1. Dans CXone, cliquez sur le sélecteur d'application et sélectionnezRoutage omnicanal > Studio .
2. Ouvrez un script ou créez-en un.

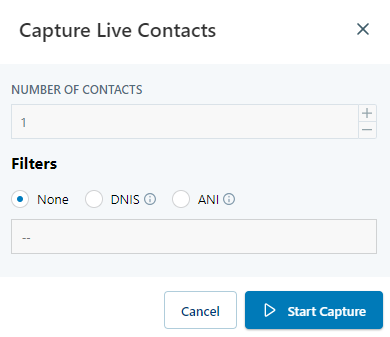

3. Click Trace > Capture Live Contacts.

   View image)



4. The Number of Contacts is currently set to 1 and cannot be changed. In a future release, you will be able to specify a number of contacts to capture.
5. Under Filters, select an option:
   • None: Select this to capture the next instance of this script running.
   • DNIS: Select this and enter a DNIS Identifie le numéro que le contact a composé pour vous joindre pour les appels vocaux entrants et le numéro que l'agent ou le système a composé pour les appels vocaux sortants. in the Enter DNIS number field. The next instance of the script running with a matching DNIS will be captured.
   • ANI: Select this and enter an ANI Également connu comme l'identificateur de l'appelant. Numéro de téléphone répertorié d'un appel vocal entrant. in the Enter ANI number field. The next instance of the script running with a matching ANI will be captured.
6. Click Start Capture. The trace output window opens. The window is empty until an instance of the script matching the selected Filter option begins to run. As the script runs, variables appear in the window in the order they fire. You can see the name of the variable, its properties and their configurations, the time the action fired, and the result of its firing.

7. Click a variable in the trace output to see all variables and their values in the script at the time that the action fired.  The variables appear in the field on the right side of the trace output window.

   View image)



8. Select or clear Global, System, or Private to filter the variables in the list. Clearing the option removes that type of variable from the list.
9. To end the trace without ending the interaction on the server, click Detach.
10. To end the trace and the interaction, click Terminate. This disconnects the contact and ends the interaction on the server.
