If

This help page is for Desktop Studio. This information is also available for CXone Studio.

표현식을 평가하고 평가의 결과(참 또는 거짓)에 따라 브랜치를 얻습니다. 스크립트의 Snippet action에서 IF  생성을 사용할 수도 있습니다.



Supported Script Types

The icon for a Generic script type - a rectangle with < and > symbols inside it.

The icon for the Email script type - a large @ symbol in a diamond.

The icon for the Chat script type - a chat bubble with an ellipsis inside (...), in a diamond shape.

The icon for the Phone script type - an old-style phone handset with curved lines indicating sound coming out of it.

The icon for the Voicemail script type - a symbol that looks like a cassette tape - two circles sitting on a horizontal line.

The icon for the Work Item script type-a piece of paper with one corner folded down and a bullet list on it.

The icon for the SMS script type - a smart phone with a chat bubble coming out of it.

The icon for the Digital script type - a computer monitor with a smartphone next to it.

일반

이메일 채팅 전화 음성 사서함 작업 항목 SMS 디지털

Input Properties

이러한 속성은 실행할 때 작업이 사용하는 데이터를 정의합니다.

속성

설명

Caption 스크립트에서 이 작업을 고유하게 식별하는 것으로 Caption을(를) 변경합니다. IVR 선택 경로 보고서에는 작업 이름과 캡션이 포함됩니다. 설명을 포함하며 고유한 캡션을 사용하면 보고서를 읽고 이해하기가 더 쉬워집니다.Use only for BEGIN CASE IF IVRLOG MENU and REQAGENT
Expression 표현식이 TRUE 또는 FALSE인지 판별하기 위한 값의 평가입니다. 예를 들어, TOTAL=>0(총계는 0 이상)입니다.

Result Branch Conditions

결과 브랜치 조건을 사용하면 작업이 실행될 때 여러 결과를 처리하기 위해 스크립트에 브랜치를 생성할 수 있습니다.

조건

설명

True

표현식이 참인 경우 사용되는 경로입니다.

False

표현식이 거짓인 경우 사용되는 경로입니다.

Script Example

이 작업을 스크립트에서 사용하는 방법에 관한 예시입니다. 완전한 스크립트는 아닙니다. 추가 스크립팅이 필요할 수 있습니다.

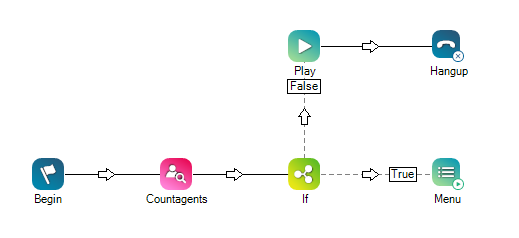

When this script is triggered, the number of available agents are counted. The If action uses the expression TOTAL>0 to determine which branch to take. If the total number of available agents is greater than 0, a menu will provide options to the caller. If the total number of agents is not greater than 0, then a message will play and the script will hang up the call.

Would you like to download this script?
