Logcall

This help page is for CXone Studio. This information is also available for Desktop Studio.

Initiates call recording.

This action is only supported for use with the ACD recorder.

Dependencies

  • Voicemails can not be logged with the Logcall action.
  • You can use the Do Not Record action to stop an active recording.
  • Use the LogrecordingPro action to manually initiate recording with CXone Recording.

Supported Script Types

A square with a line branching from it that goes to three other squares.

Generic

 Phone

Input Properties

These properties define data that the action uses when executing.

Property

Description

Add Caption

Enter a short phrase that uniquely identifies this action in the script. The caption appears on the script canvas under the action icon.

While In Conversation

Determines what gets logged during an interaction when the contact is not on hold. Options include:

While In Ivr Or OnHold

Determines what gets logged while a contact is on hold or in an IVR section of a script. Options include:

  • PauseRecording: Stops the recording while the contact is alone on the line.

  • RecordOnlyContactAudio: Records only the contact's voice.

  • RecordOnlyNonContactAudio: Records IVR or hold music.

  • RecordBothcontactAndNonContactAudio: Records both the contact's voice, agent's voice, and any other audio.

  • RecordSilenceForDuration: Records silence over a period of time, but no audio.
File Format

Determines what format the log file generates as. Options include:

  • CompressedMp3Mono: Converts recordings to MP3 format, which typically results in smaller file sizes. Use of compression may delay availability of your recordings. Some files are not compressed to MP3 and remain in their original uncompressed WAV format. This file format is only supported with ACD recorder. Files are not converted if they are:

    • Over 1 GB.
    • Very small, especially if they have little to no audio or are a second or less in length.

  • MonoWav: Non-compressed, standard audio format.

  • StereoWav: Nnon-compressed, large format that separates patron into one channelClosed A way for contacts to interact with agents or bots. A channel can be voice, email, chat, social media, and so on. and system/agent into another channel. Useful for voice analytics.

Result Branch Conditions

Result branch conditions allow you to create branches in your script to handle different outcomes when an action executes.

Condition

Description

Default

Path taken unless the script meets a condition that requires it to take one of the other branches. It is also taken if the action's other branches are not defined.

Tips & Tricks

  • Voicemails can not be logged with the Logcall action.
  • You can use the Do Not Record action to stop an active recording.

Script Example

This is an example to show how this action can be used in scripts. It is not intended to be a complete script. Additional scripting may be required.

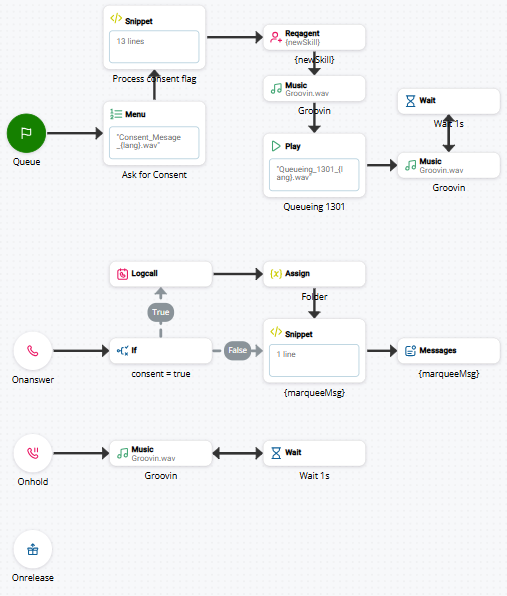

The following excerpt initiates a call recording after attaining consent. The menu allows the contact to confirm or deny consent to be recorded and the decision is logged as True (for confirm) or False (for deny) in the ensuing snippet before requesting an agent. When an agent answers the call, the If action directs the contact to the Logcall action if the consent was confirmed (as True), and Logcall initiates a recording.

Would you like to download this script?
