CREATE USER FIELD

Creates a custom data definition through Proactive XS for CXone Mpower. Any data definition type you can create in CXone Mpower can also be created through Create User Field.

Dependencies

Create User Field is for use with Proactive XS only.

Supported Script Types

Phone

Input Properties

These properties define data that the action uses when executing.

Property	Description
Add Caption	Enter a short phrase that uniquely identifies this action in the script. The caption appears on the script canvas under the action icon.
Name	Enter the name you want to give your source. Create Prospect v.1 used to carry this name; however, mapping requires that field be removed and stored here.
DataType	The type of data to return, such as a string, phone, boolean A data type that has two possible values: true and false., int, decimal, date, time, etc.
Default Value	The value you would provide to any record without a matching mapping. Cannot exceed 200 characters.
Associations	Applies only to the phone data type. A correlation between a phone data type and another custom data definition. Make sure the custom data definition is the same data type as the associated field.

Result Branch Conditions

Result branch conditions allow you to create branches in your script to handle different outcomes when an action executes.

Condition	Description
Default	Path taken unless the script meets a condition that requires it to take one of the other branches. It is also taken if the action's other branches are not defined.
Error	Path taken when the action fails to execute properly. For example, when there is an unexpected problem such as poor connectivity, syntax errors, and so on. The _ERR variable, with a single underscore character, should be populated with a condensed explanation of the problem.
FieldInUseByProcessingFilter	Path taken if there is an attempt made to change or remove a value currently in use by a filter.
InvalidDataType	Path taken if the data type provided does not match a supported data type.
NoNameProvided	Path taken if Name is blank.
DataTypeMismatch	Path taken if the subfield given has a different data type than the expected data type. For example, a Date data type rather than a Boolean may be given to compliance.
UserDefinedFieldNotFound	Path taken if the subfield is mapped to a non-existent field.
InvalidSubField	Path taken if fields requested in the properties cannot be interpreted by CXone Mpower.
DefaultValueDoesntMatchDataType	Path taken if the specified default value does not match the specified data type. For example, if the default value is a string, but the data type is an integer.
DataTypeDoesntSupportDefaultValue	Path taken if the data type does not support the default value, for example, the phone data type.
FieldExceededLength	Path taken if Name is longer than 255 characters.
InUseAsSubtype	Path taken if the field is currently in use as a subtype of another field, specifically if the data type is being changed.
InUseByFilter	Path taken if the field is currently in use by a filter.

Script Example

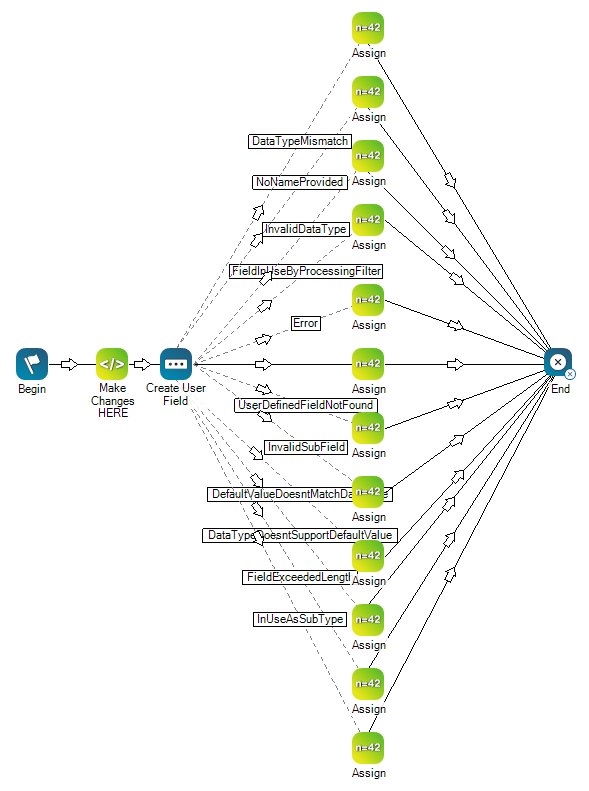

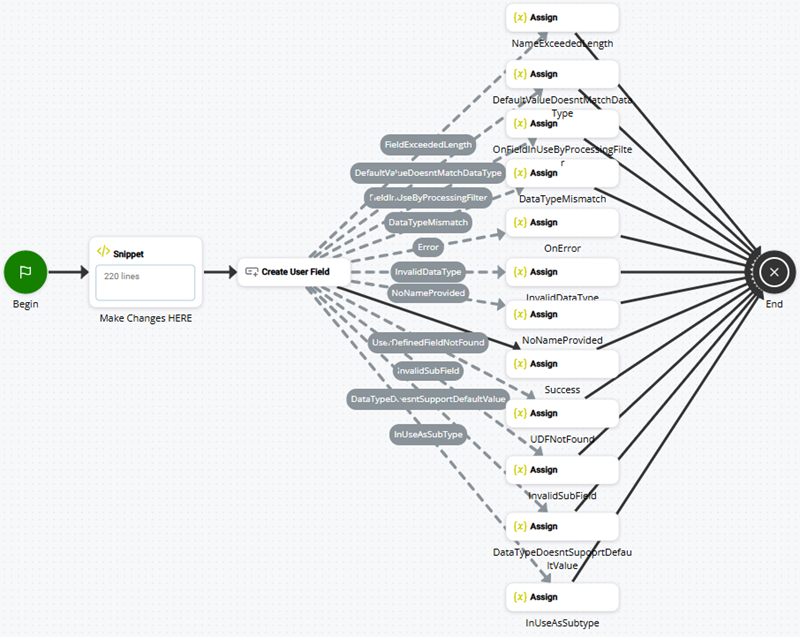

The script shown below sets all the paths for Create User Field, which enables you to create a new custom data definition.

Double-click the Snippet action to view the snippet properties. Click here to view these properties in a text view.

Would you like to download this script?
