Get Source Map

This help page is for Desktop Studio. This information is also available for CXone Studio.

Acquires the existing legend for a given source. For example, if you want to add on to your existing map, you can get the source map and append a new data definition to it.

Dependencies

Get Source Map is for use with Proactive XS only.

Supported Script Types

The icon for a Generic script type - a rectangle with < and > symbols inside it.

The icon for the Email script type - a large @ symbol in a diamond.

The icon for the Chat script type - a chat bubble with an ellipsis inside (...), in a diamond shape.

The icon for the Phone script type - an old-style phone handset with curved lines indicating sound coming out of it.

The icon for the Voicemail script type - a symbol that looks like a cassette tape - two circles sitting on a horizontal line.

The icon for the Work Item script type-a piece of paper with one corner folded down and a bullet list on it.

The icon for the SMS script type - a smart phone with a chat bubble coming out of it.

Generic

Email Chat Phone Voicemail Work Item SMS

Input Properties

These properties define data that the action uses when executing.

Property

Description

SourceName The name of the source where the records originated. Provides a logical grouping of records within the system. If you have an invalid or missing source map, you may receive a Missing External ID error.

Output Properties

These properties contain variables that hold data returned from executing the action. They're available for reference and use when the action completes.

Property

Description

Results (out) A dynamic data object containing the results of the action executing.

Result Branch Conditions

Result branch conditions allow you to create branches in your script to handle different outcomes when an action executes.

Condition

Description

Default

Path taken unless the script meets a condition that requires it to take one of the other branches. It is also taken if the action's other branches are not defined.

InvalidSource

Path taken if the source name provided does not exist.

Script Example

This is an example to show how this action can be used in scripts. It is not intended to be a complete script. Additional scripting may be required.

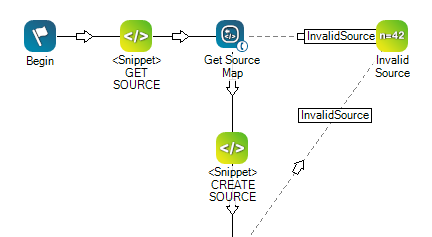

The example below is just part of a much bigger script. The entire script can be seen in the Createsourcemap phone script example. This portion of the script is used to retrieve an existing source map to which you can make changes.

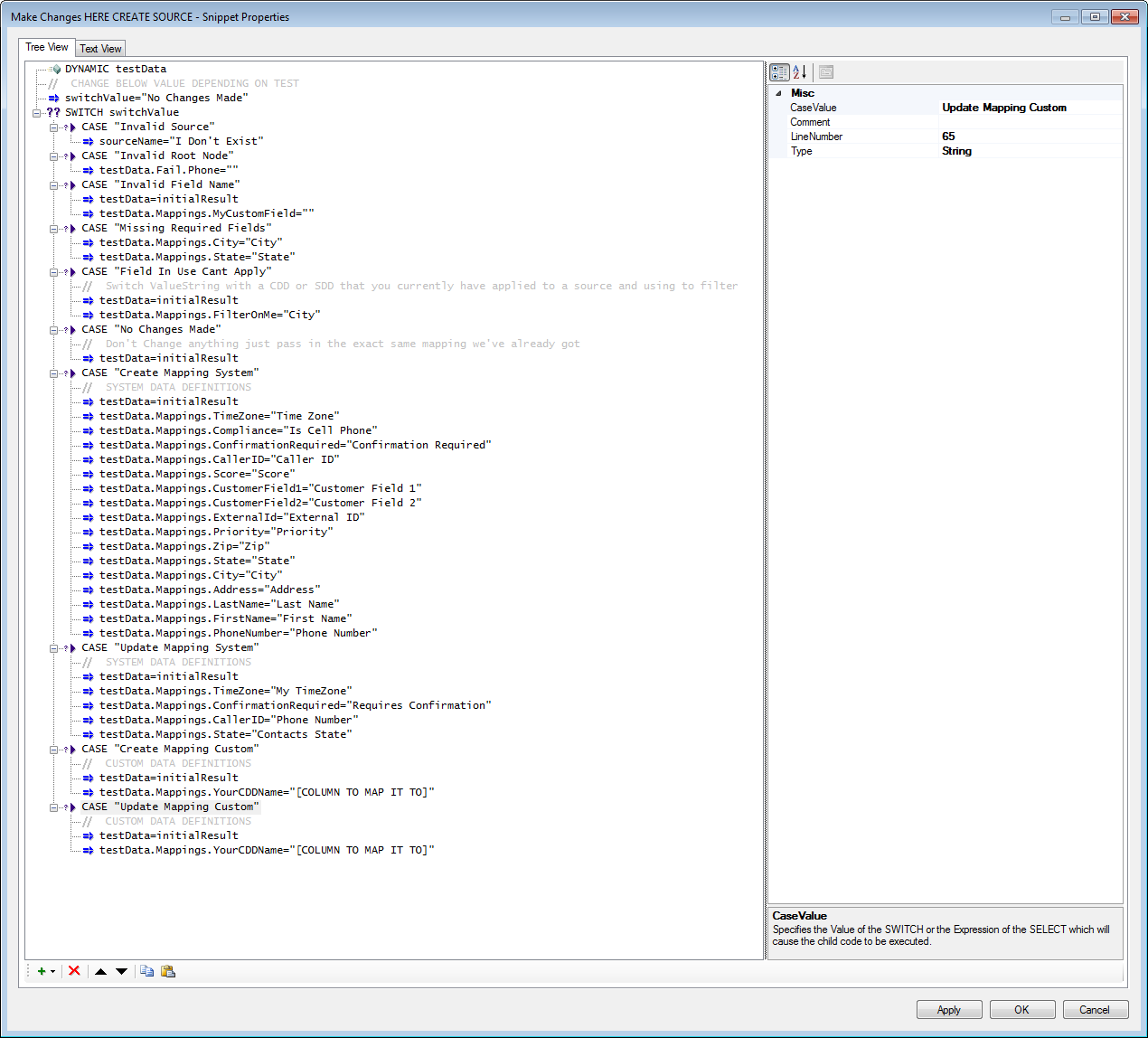

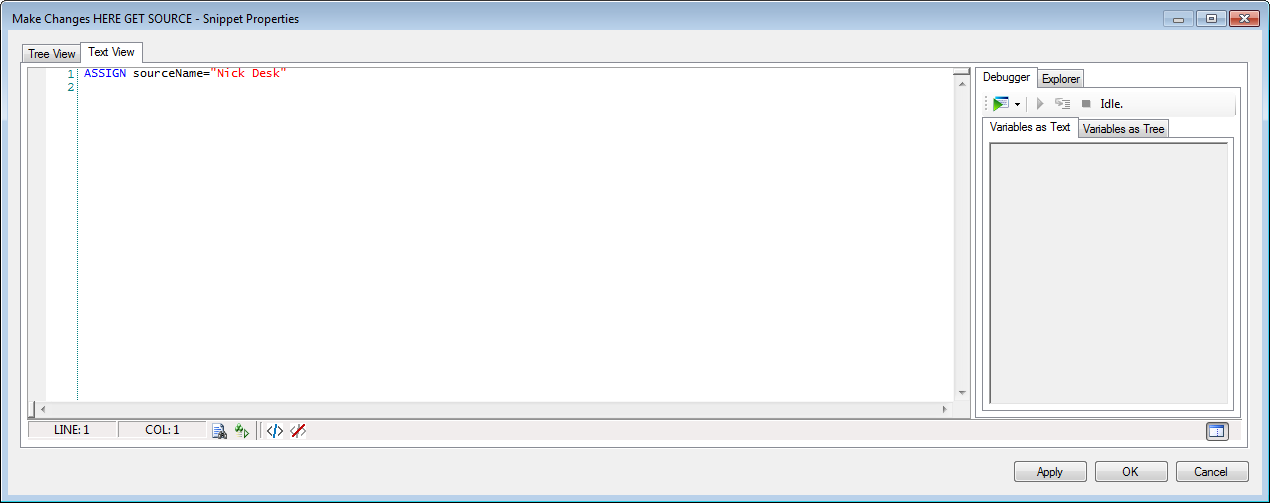

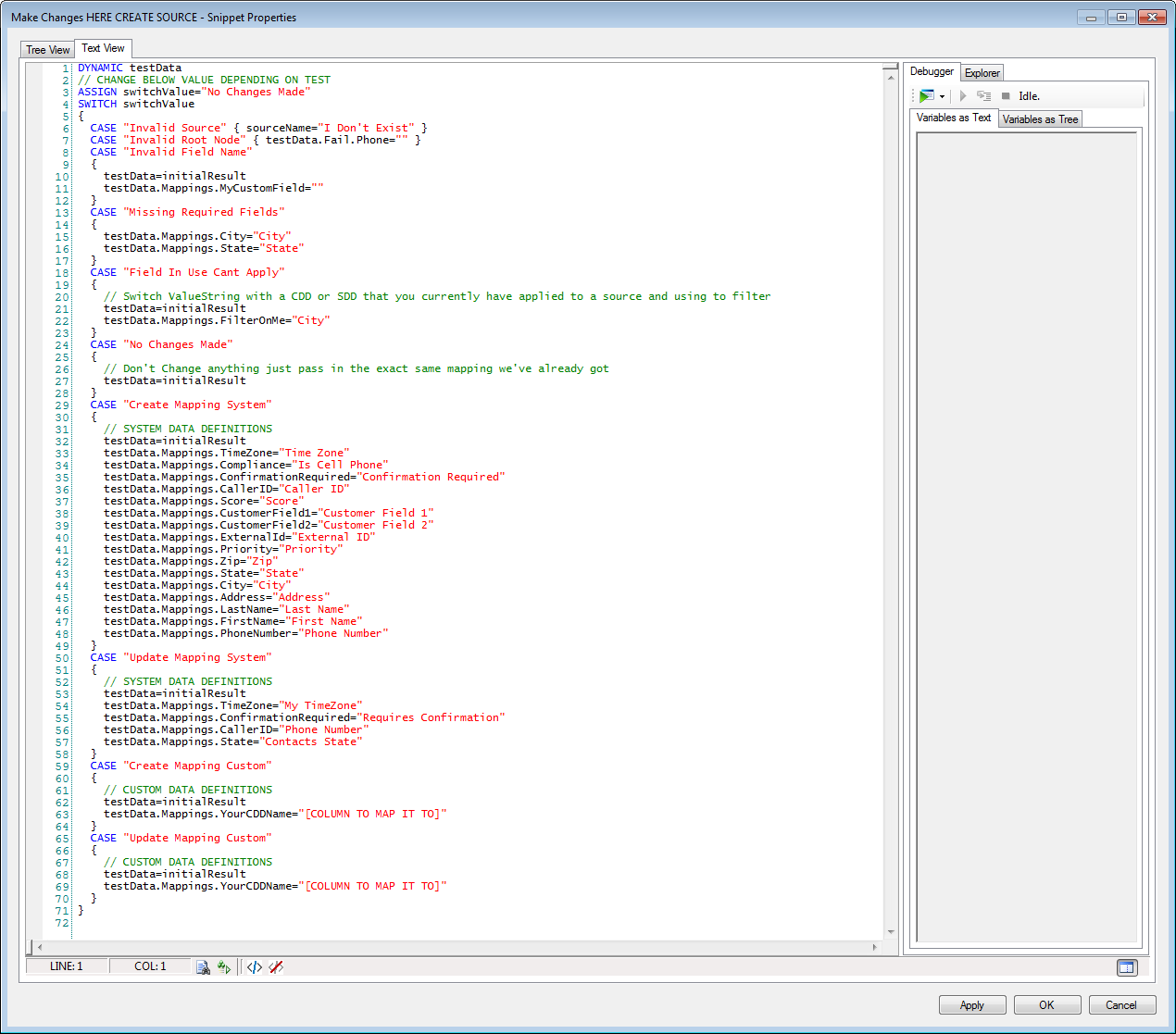

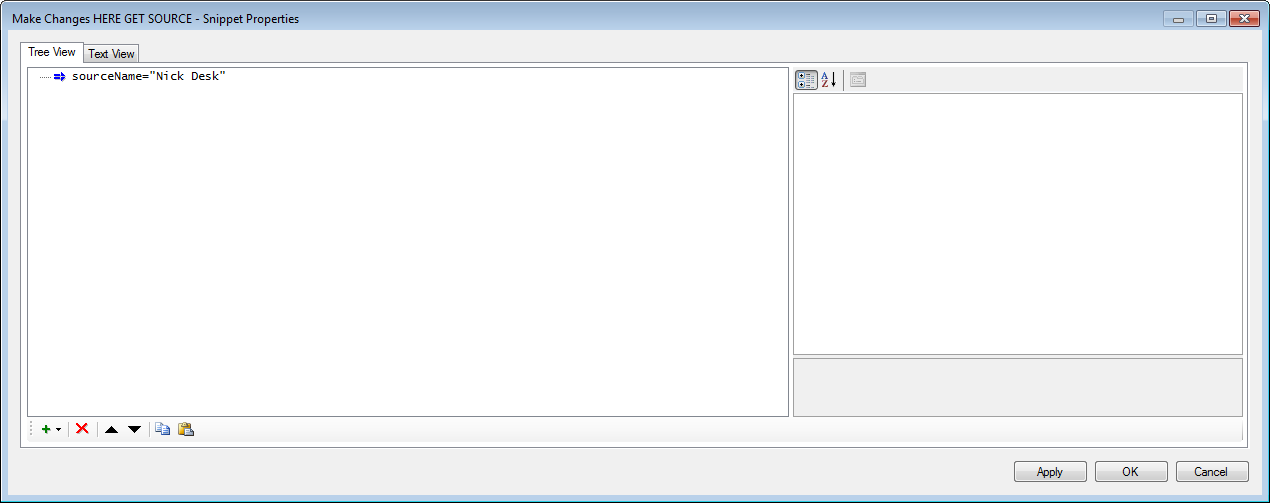

Double-click the Snippet actions to view the Snippet Properties:
